1.5Gbps dual carrier base station with beamforming antenna

Ultra Capacity. Unmatched Reliability.

Built for enterprise demanding CIR and residential customers
  • 1.5Gbps base station for areas demanding ultra-high capacity.
  • Two carriers in a single unit, saving upon tower space and costs.
  • Unmatched service reliability in the harsh unlicensed spectrum using Industry-best beamforming antennas and dynamic carrier selection per SU.
  • Configurable sector width, enabling site capacity growth upon demand with no need for additional spectrum.

Dual Carrier Base Station with Independent Beamforming Antennas

jet duo 5ghz with beamforming antenna

JET DUO 5GHz highlights

1.5Gbps dual carrier base station with beamforming antenna

Up to 2 x 750 Mbps
4.9-6.0 GHz
Ch. BW: 2 x 10MHz up to 2 x 80MHz
Configurable sector width: 90°, 60°, 45°
Built-in GPS
WAN Interfaces: Fiber (SFP) and GbE
Compatible with all RADWIN SUs

Download JET DUO 5GHz Brochure

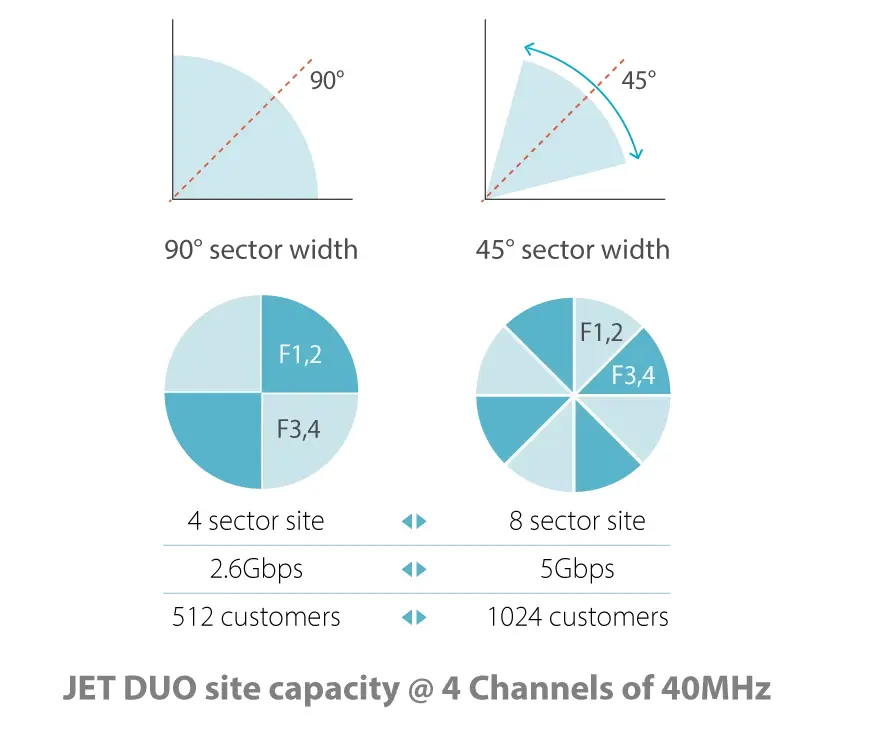

JET DUO software Define Sector

Upon demand for more capacity, network owners can reconfigure their JET DUO antenna sector width from 90° to 60° or 45°, all through software, allowing them to double their network capacity and served customer base utilizing the same frequency channels up to four times.

2nd generation beamforming antenna

Reliable connectivity and high service availability per SU

Dynamic switching between the two JET DUO’s carriers, and dynamic channel bandwidth selection, per individual Subscriber Unit, assure best service performance, even in the event of adverse transmission conditions.

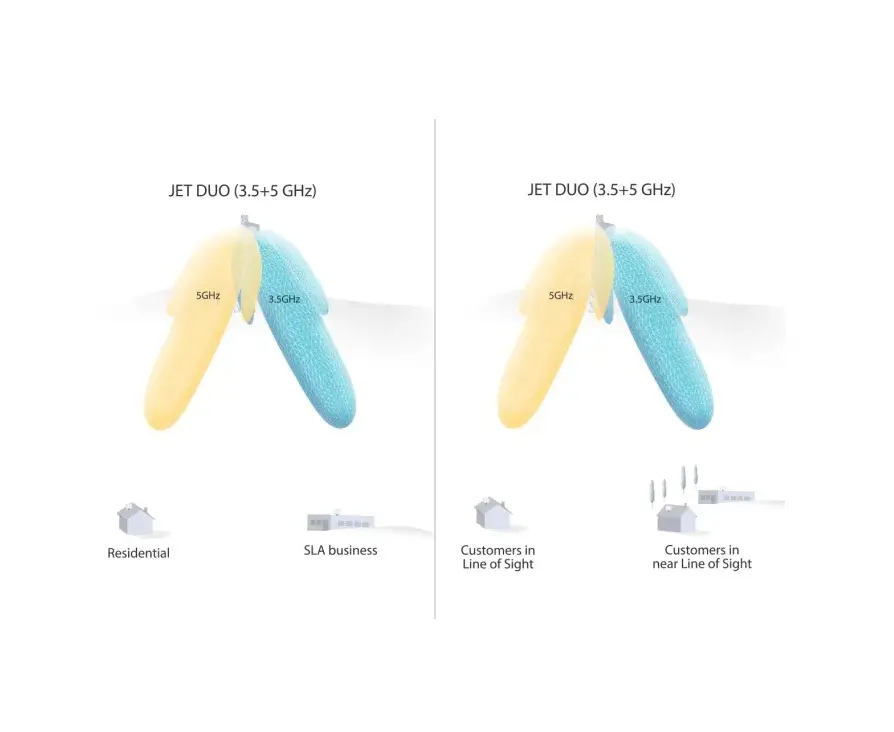

Frequency Diversity

Wide coverage regardless of radio interference

RADWIN’s market-proven beamforming antenna generates 20dB spatial interference rejection and significantly increases capacity, extends coverage, and saves upon tower space.

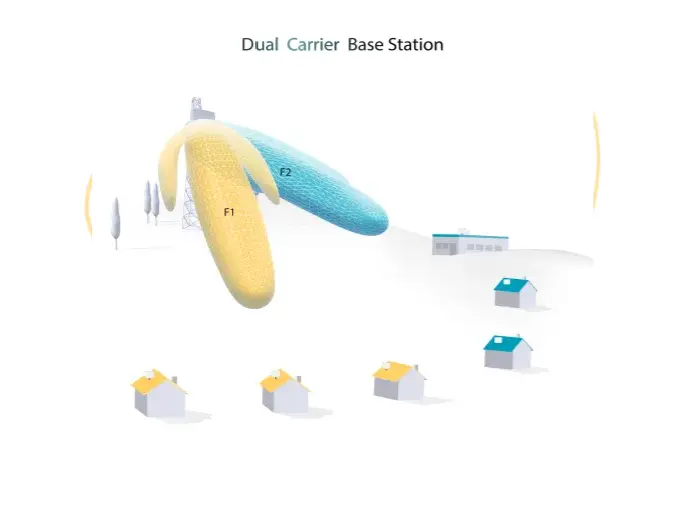

Dual carrier base station

Seamless capacity growth upon demand

More base stations can be added to increase site capacity without the need for additional spectrum, just reconfigure the JET DUO sectors to a narrower width.

frequency reuse 2

High Frequency Reuse & Spectrum Efficiency

Frequency channels can be reused up to 4 times per site, depending on the sector width. Frequency channels can also be reused in nearby sites.

What JET DUO 5GHz Can Do For You?

Residential Broadband for Triple Play Services

Residential Broadband for
Triple Play Services

Fiber-Like Wireless Access for Enterprise SLA

Fiber-Like Access for
Enterprise requiring SLA connectivity

Backhaul for WiFi Access Points

Backhaul for Wi-Fi Access Points or 4G small cells
