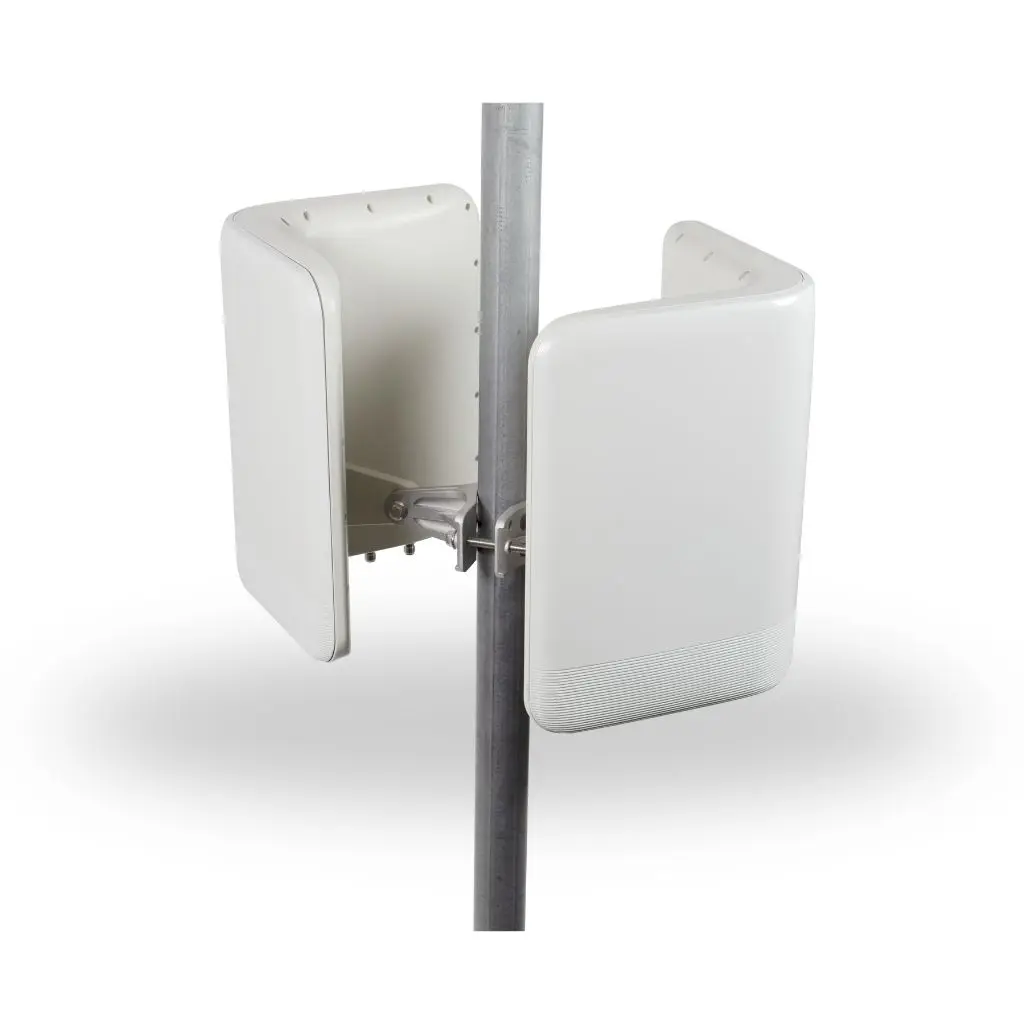

MultiSector Integrated
Dual-Carrier PtMP BS | Integrated | 4.9 GHz – 6 GHz
RADWIN MultiSector Integrated is a compact, site-in-a-box base station solution with dual integrated 90° antennas and support for an additional dual 90° external antenna. Delivering up to 1.5 Gbps, it enables seamless 360° coverage and is ideal for MicroPoP deployments in short-range rural and industrial environments.
Designed for applications such as village broadband, remote automation, and surveillance, MultiSector Integrated simplifies infrastructure by integrating radios, antennas, GPS sync, and switching, all within a single unit.
- Dual-carrier base station with up to 2 × 750Mbps
- Operates in the 4.9 GHz – 6 GHz band
- Built-in GPS for TDD sync and integrated switch
- Dual 90° integrated antennas
- 2 x MIMO TNC connectors for external antenna
- SLA and best-effort service level support
- Supports 16 or up to 128 Subscriber Units
Add-On Antenna Unit
- Operates in the 4.9 GHz – 6 GHz band
- 2 x MIMO TNC connectors for dual 90° extension
Main values
Robust performance with
high interference immunity
Achieves full 360°
coverage with sector topology, offering stronger interference mitigation than
traditional Omni solutions.
Reduced site complexity
and lower TCO
Combines radios,
antennas, GPS, a switch, and power into one unit—reducing cables, devices, and
installation costs.
Flexible architecture
with optional expansion
Start with 180° coverage and easily scale to 360° using RADWIN or third-party antennas. Optional
self-backhaul eliminates the need for a separate PtP unit.
High spectrum efficiency
with minimal channel use
Covers 360° using only
two frequency channels (reuse factor 2), paired with 256 QAM modulation for
maximum capacity.
