SU AIR
High-Capacity Subscriber Unit | 5 GHz | Up to 500 Mbps

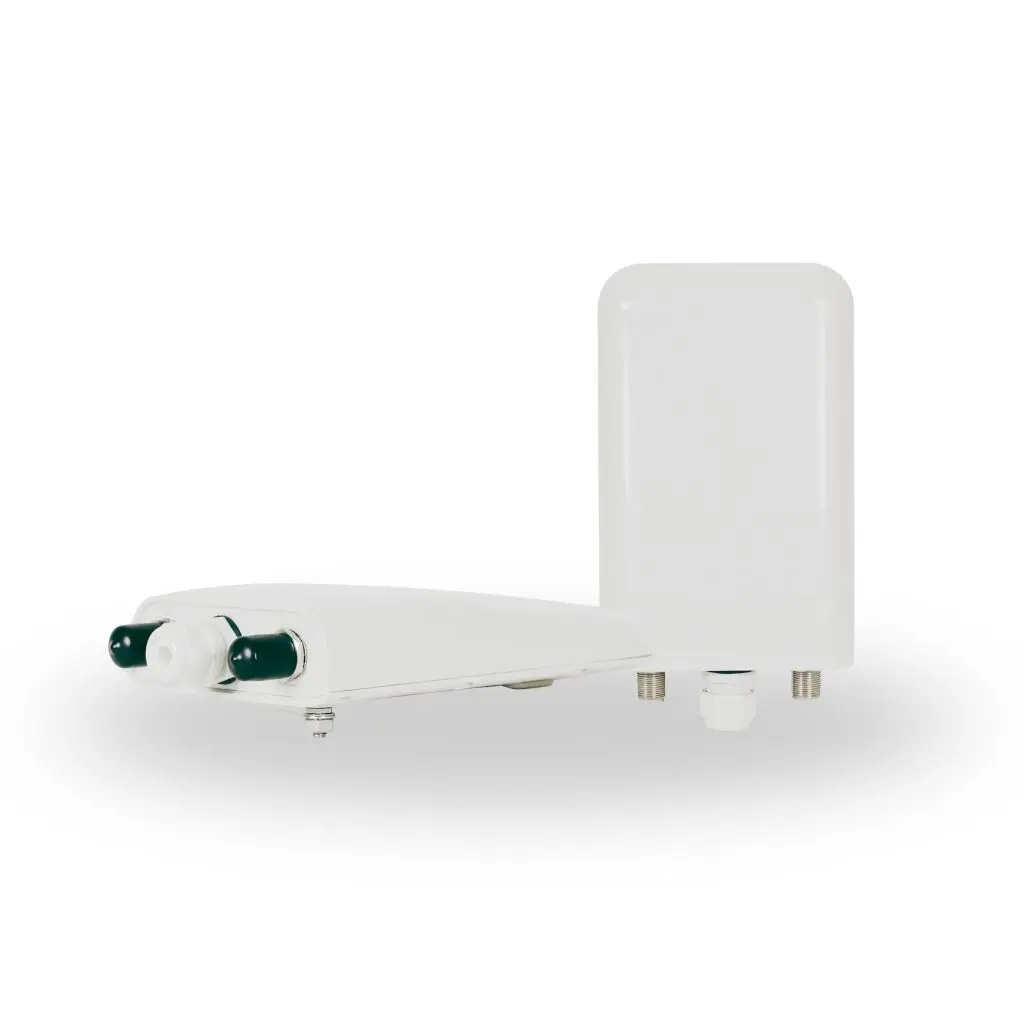

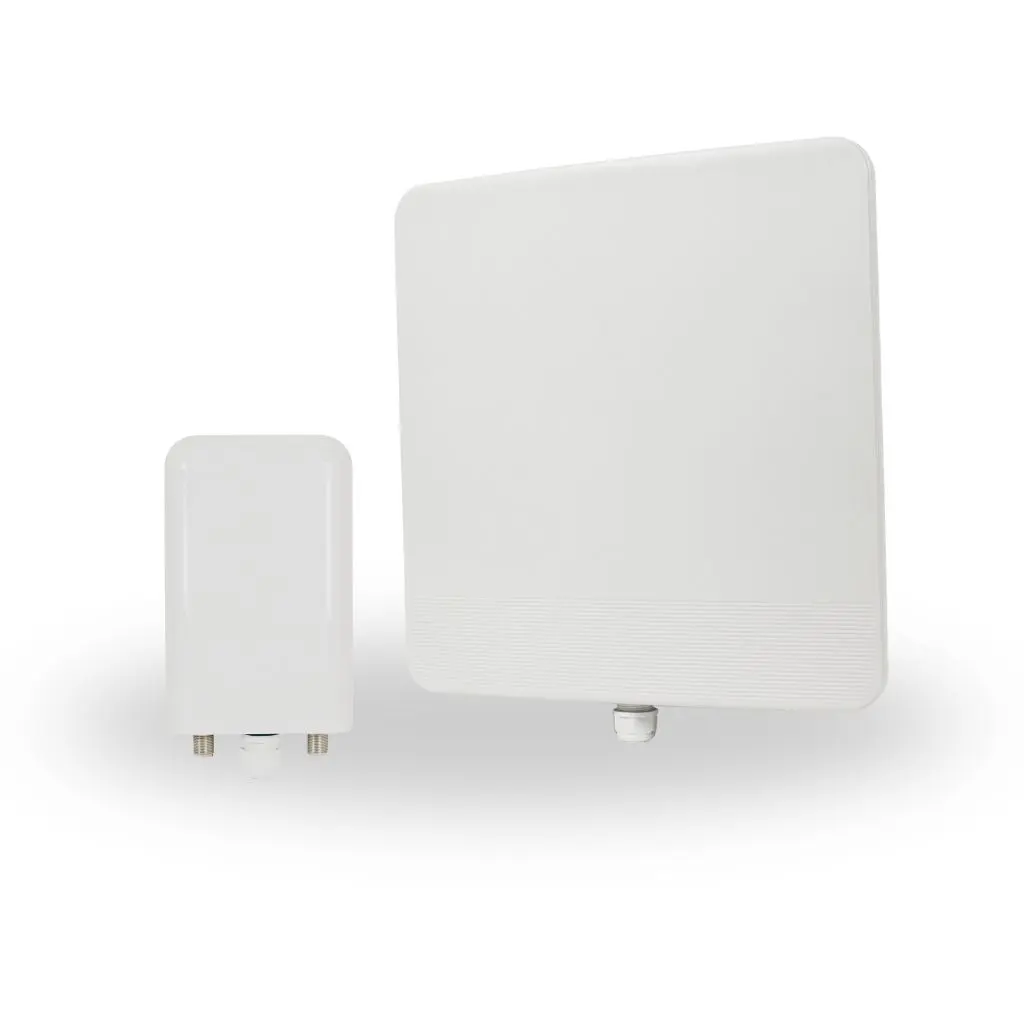

RADWIN SU AIR is a cost-effective, high-capacity Subscriber Unit designed for best-effort residential and non-SLA applications. Operating in the sub-6 GHz band, SU AIR is available with either an integrated 22 dBi antenna or a connectorized interface for external antennas.
Delivering up to 500 Mbps and capable of more than 300K packets-per-second, SU AIR ensures reliable performance in congested environments and over long-distance links. It supports dynamic channel bandwidth selection per direction, allowing maximum efficiency even in challenging conditions. SU AIR is interoperable with all RADWIN base stations and features a rugged IP67-rated design for long-lasting outdoor use.
- Up to 500 Mbps throughput
- Available with 22 dBi integrated or connectorized antenna
- Operates in the 4.9 GHz – 6 GHz band
- Best-effort service level
- Packet processing power: >300K PPS
- Dynamic channel bandwidth per TX/RX direction
- Interoperable with all RADWIN 5GHz base stations
- App-based configuration, alignment, and testing
- Range up to 40 km / 25 miles
- Rugged IP67-rated enclosure
- Uniform part number for simplified inventory management
Main values
Reliable connectivity in
tough conditions
RADWIN’s field-proven air interface ensures strong performance in noisy spectrum and near-Line-of-Sight (nLOS) paths.
Durable and built to
last
IP67-certified for
outdoor environments, SU AIR reduces operational costs by minimizing the need
for site visits.
Guaranteed full capacity at any packet size
With over 300K PPS
processing power, SU AIR delivers consistent performance regardless of traffic
patterns.
Simple, app-driven
installation
Configuration,
alignment, and link validation can all be done using RADWIN’s intuitive
smartphone app; no laptop is required.
